Semi enclosed medium low temperature water-cooled refrigeration compressor unit
Category:
Engine Series
key words:
Engine
Fan
Note: It can be adapted to various brands of semi closed compressors such as Beijing Bizer, Fujihao, Duling, Daming, Bolaite, Lixi, etc. The refrigerant options include R404A, R507A, R22, etc; The refrigeration capacity in the table is the value of the Bizer compressor at Tc=40 ℃ and Te=-25 ℃.
Product Details
| Project | Compressor Model |
Condenser | Ref capacity (W) |
Power | AIR suction | Outlet pipe | Waterpipe |
| Model | R507A（W） | (KW) | Φmm | Φmm | inch | ||
| JZF03D | 2CES-3Y | 5HP | 4830 | 2.70 | 10 | G1½" | |
| JZF04D | 4EES-4Y | 5HP | 6520 | 3.73 | 12 | ||
| JZF05D | 4DES-5Y | 5HP | 7790 | 4.42 | 12 | ||
| JZF06D | 4CES-6Y | 8HP | 9310 | 5.22 | 12 | ||
| JZF08D | 4TES-9Y | 8HP | 11580 | 6.33 | 12 | ||
| JZF10D | 4PES-12Y | 10HP | 12860 | 6.90 | 16 | ||
| JZF12D | 4NES-14Y | 12HP | 15640 | 8.45 | 16 | ||
| JZF15D | 4HE-18Y | 15HP | 22050 | 11.72 | 19 | G2" | |
| JZF20D | 4GE-23Y | 20HP | 25900 | 13.88 | 19 | ||
| JZF25D | 6HE-28Y | 25HP | 32450 | 17.25 | 22 | ||
| JZF30D | 6GE-34Y | 30HP | 38900 | 21.05 | 22 | ||
| JZF35D | 6HE-35Y | 35HP | 31500 | 16.99 | 22 | G2½" | |
| JZF40D | 6FE-44Y | 40HP | 46350 | 25.55 | 22 | ||
| Note: It can be adapted to various brands of semi closed compressors such as Beijing Bizer, Fujihao, Duling, Daming, Bolaite, Lixi, etc. The refrigerant options include R404A, R507A, R22, etc; The refrigeration capacity in the table is the value of the Bizer compressor at Tc=40 ℃ and Te=-25 ℃. | |||||||

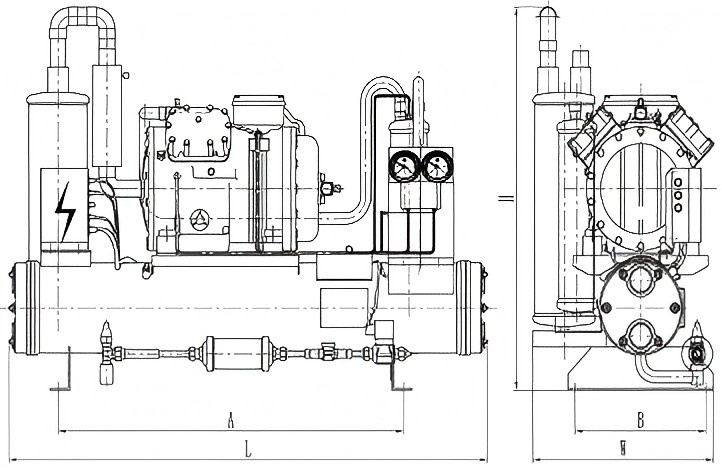

Appearance and installation dimensions of semi enclosed medium and low temperature water-cooled unit
| Project | Compressor Model |
Condenser | Boundary Dimension | Installation Dimension | |||
| Model | L | W | H | A | B | ||
| JZS03D | 2CES-3Y | 5HP | 1030 | 600 | 800 | 1010 | 580 |
| JZS04D | 4EES-4Y | 5HP | 1030 | 600 | 800 | 1010 | 580 |
| JZS05D | 4DES-5Y | 5HP | 1030 | 600 | 800 | 1010 | 580 |
| JZS06D | 4CES-6Y | 8HP | 1100 | 600 | 800 | 1080 | 580 |
| JZS08D | 4TES-9Y | 8HP | 1100 | 600 | 800 | 1080 | 580 |
| JZS10D | 4PES-12Y | 10HP | 1200 | 600 | 800 | 1180 | 580 |
| JZS12D | 4NES-14Y | 12HP | 1200 | 600 | 800 | 1180 | 580 |
| JZS15D | 4HE-18Y | 15HP | 1380 | 650 | 900 | 1360 | 630 |
| JZS20D | 4GE-23Y | 20HP | 1380 | 650 | 900 | 1360 | 630 |
| JZS25D | 6HE-28Y | 25HP | 1380 | 650 | 900 | 1360 | 630 |
| JZS30D | 6GE-34Y | 30HP | 1680 | 650 | 960 | 1660 | 630 |
| JZS35D | 6HE-35Y | 35HP | 1680 | 650 | 960 | 1660 | 630 |
| JZS40D | 6FE-44Y | 40HP | 1880 | 700 | 960 | 1860 | 680 |
| Suitable for various brands of semi enclosed compressors such as Beijing Bizer, Fujihao, Duling, Daming, Borate, Lixi, etc. Refrigerants such as R22/R404/R410 can be selected according to needs. Note: Product dimensions are subject to change without prior notice and will be updated in a new sample. We apologize for any inconvenience caused! |
|||||||
