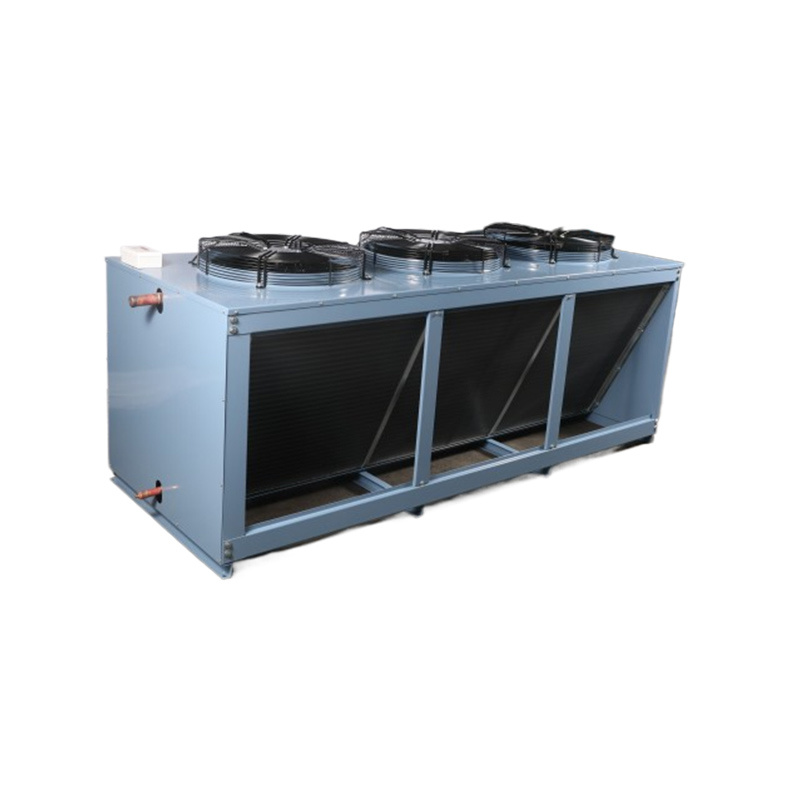

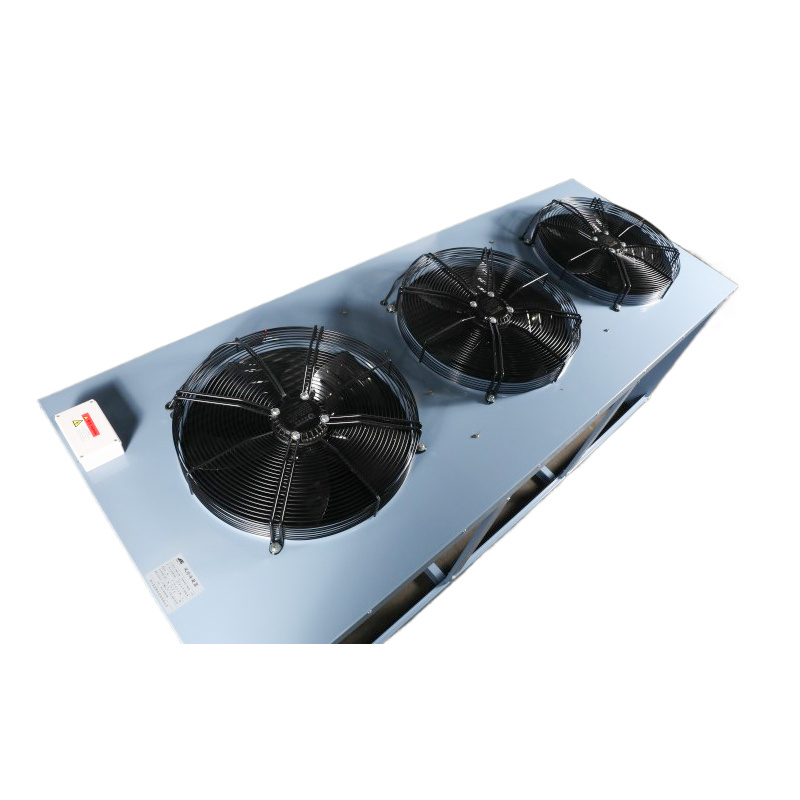

FNV type air-cooled condenser

Category:

Product

key words:

Engine

Fan

Note: The data is based on the operating conditions at an inlet air temperature of 35 ℃ and a condensation temperature of 50 ℃. Note: Product dimensions are subject to change without prior notice and will be updated in a new sample. We apologize for any inconvenience caused!

Get Quote Now

Get Free Catalog

Product Details

Model	Ref capacity (W)	Cooling Area (m2)	Fan					I nto trachea (φ mm)	Fluid outlet (φ mm)
Model	Ref capacity (W)	Cooling Area (m2)	Fan (mm)	Qty (N)	Volume (m3/h)	Voltage (V)	Power (W)	I nto trachea (φ mm)	Fluid outlet (φ mm)
FNV-28.4/100	28400	100	450	2	2×4711	380	2×250	25	19
FNV-31.2/120	31200	120	500	2	2×6765		2×414	25	19
FNV-37.1/140	37100	140	500	2	2×6765		2×414	25	19
FNV-42.8/160	42800	160	550	2	2×8193		2×600	25	19
FNV-48.9/180	48900	180	550	2	2×8193		2×600	25	19
FNV-52.2/200	52200	200	500	3	3×6765		3×414	25	19
FNV-62.2/220	62200	220	550	3	3×8193		3×600	25	19
FNV-66.8/260	66800	260	550	3	3×8193		3×600	32	22
FNV-74.1/280	74100	280	600	3	3×9570		3×780	32	22
FNV-79.8/300	79800	300	600	3	3×9570		3×780	35	22
FNV-100.5/350	100500	350	630	3	3×11800		3×800	42	22
FNV-105.8/380	105800	380	550	4	4×8193		4×600	42	22
FNV-109.0/400	109000	400	600	4	4×9570		4×780	42	22
FNV-128.0/450	128000	450	600	4	4×9570		4×780	42	22
FNV-142.2/500	142200	500	600	4	4×9570		4×780	42	22
FNV-166.8/600	166800	600	630	4	4×11800		4×800	42	22

Note: The data is based on the operating conditions at an inlet air temperature of 35 ℃ and a condensation temperature of 50 ℃.

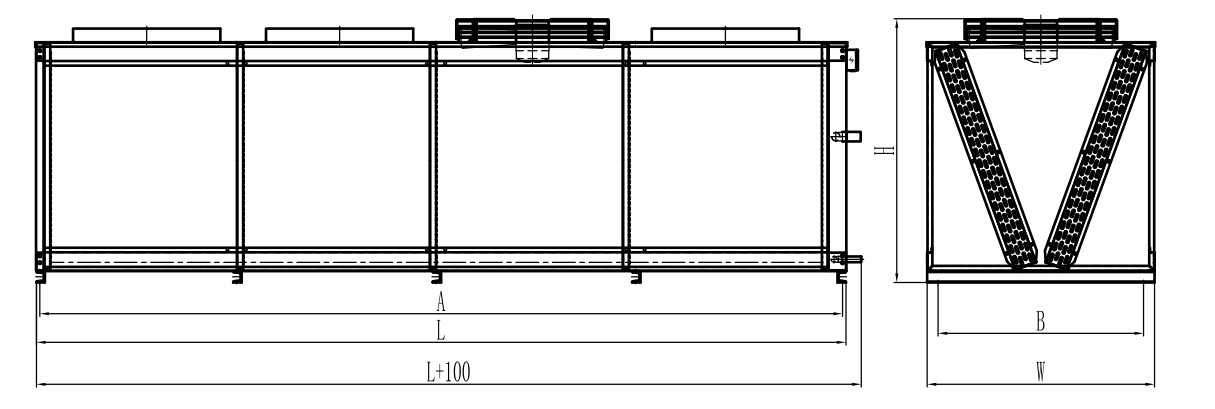

Mode l	L	W	H	A	B
Mode l	(mm)	(mm)	(mm)	(mm)	(mm)
FNV-28.4/100	1430	800	770	1260	770
FNV-31.2/120	1560	800	770	1510	770
FNV-37.1/140	1590	850	870	1530	820
FNV-42.8/160	1810	850	870	1760	820
FNV-48.9/180	1810	900	870	1760	870
FNV-52.2/200	1920	900	970	1870	870
FNV-62.2/220	2260	900	770	2210	870
FNV-66.8/260	2410	900	970	2360	870
FNV-74.1/280	2660	900	970	2710	870
FNV-79.8/300	2470	930	870	2420	900
FNV-100.5/350	2690	930	970	2700	900
FNV-105.8/380	3230	930	970	2180	900
FNV-109.0/400	2930	900	1080	2880	870
FNV-128.0/450	3050	930	1180	3000	900
FNV-142.2/500	3370	1000	1180	3320	1070
FNV-166.8/600	3550	1000	1280	3500	1070

Note: Product dimensions are subject to change without prior notice and will be updated in a new sample. We apologize for any inconvenience caused!
