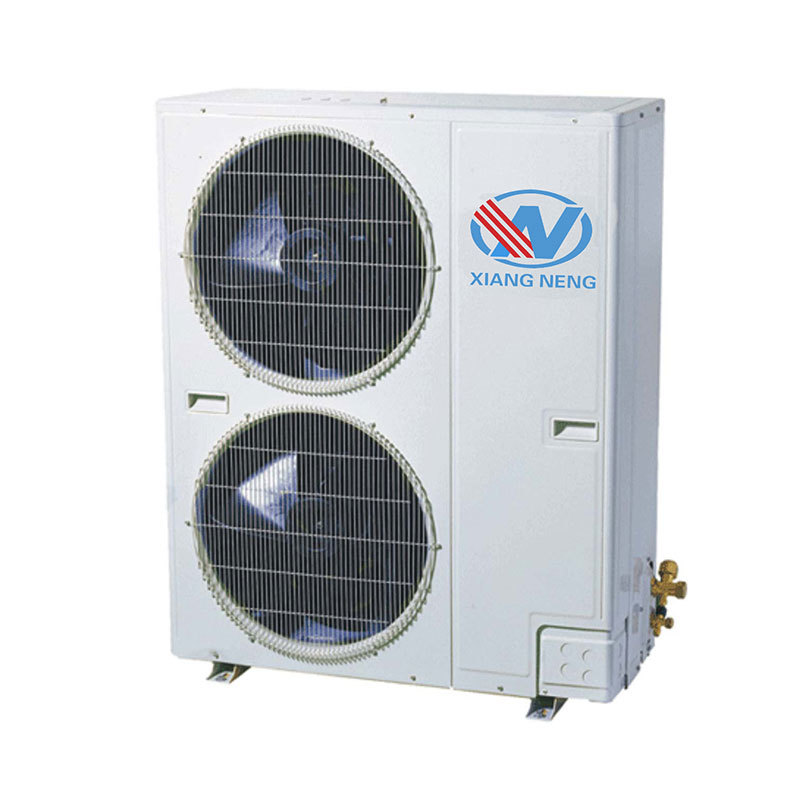

FL wall mounted air-cooled condenser

Category:

Condenser Series

key words:

Engine

Fan

Note: Product dimensions are subject to change without prior notice; Thanks for your understanding!

Get Quote Now

Get Free Catalog

Product Details

Model	Long	Wide	Tall	Installation size		Fan motor parameters					Entry and exit takeover
	Long	Wide	Tall	Long	Wide	Diameter	Number	Power	Air volume	Voltage	Inhale	Transudate
	mm	mm	mm	mm	mm	mm	T	W	m³/h	V	mm	mm
FL-3HP	950	420	850	580	385	480	1	65	4500	220	16	10
FL-4HP	950	420	850	580	385	480	1	65	4500		16	10
FL-5HP	950	420	1250	580	385	480	2	130	9000		19	12
FL-6HP	950	420	1250	580	385	480	2	130	9000		19	12
FL-7HP	1040	530	1250	660	470	450	2	150	3600	380	22	16
FL-8HP	1040	530	1350	660	470	450	2	150	3600		22	16
FL-10HP	1325	457	1285	880	450	450	2	250	4711		22	16
FL-12HP	1550	500	1390	1100	450	550	2	330	6500		22	16
Note: Product dimensions are subject to change without prior notice; Thanks for your understanding!

Pre

FU type box type air-cooled condenser

Technical parameters of E6 series cooling fan with cooling capacity
